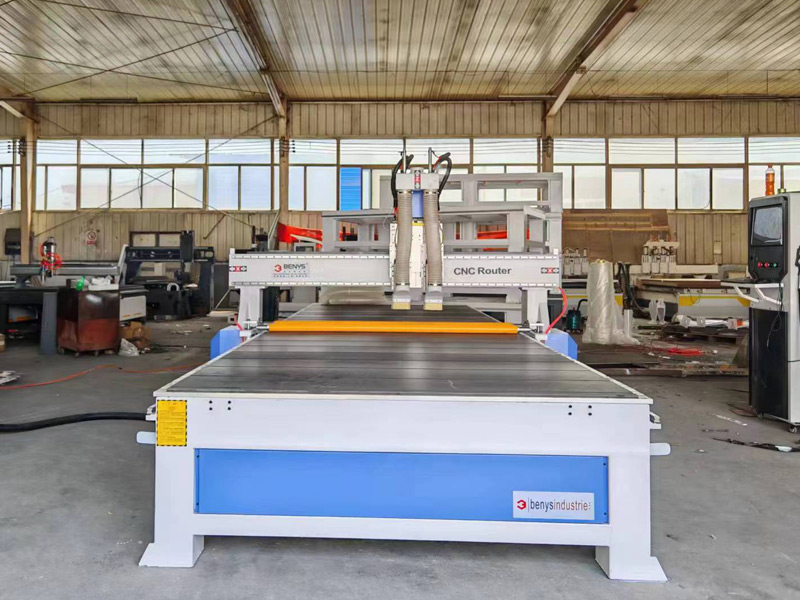

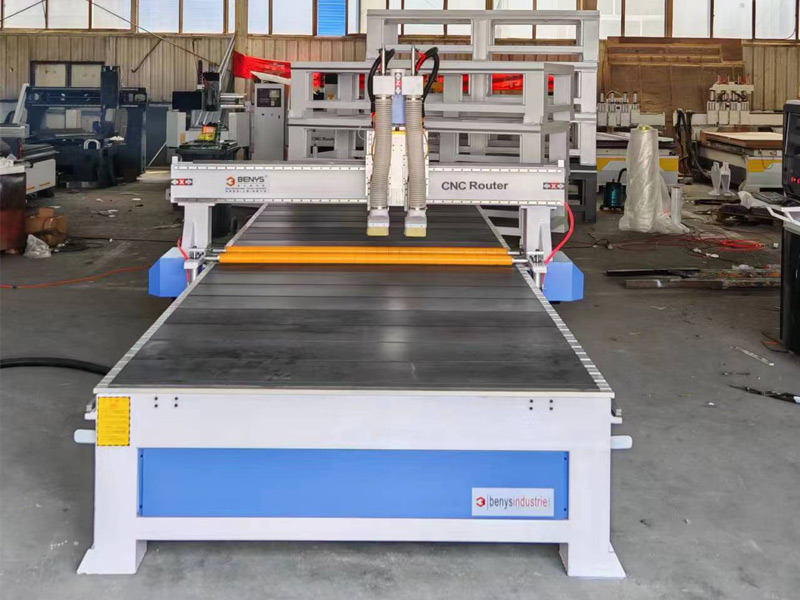

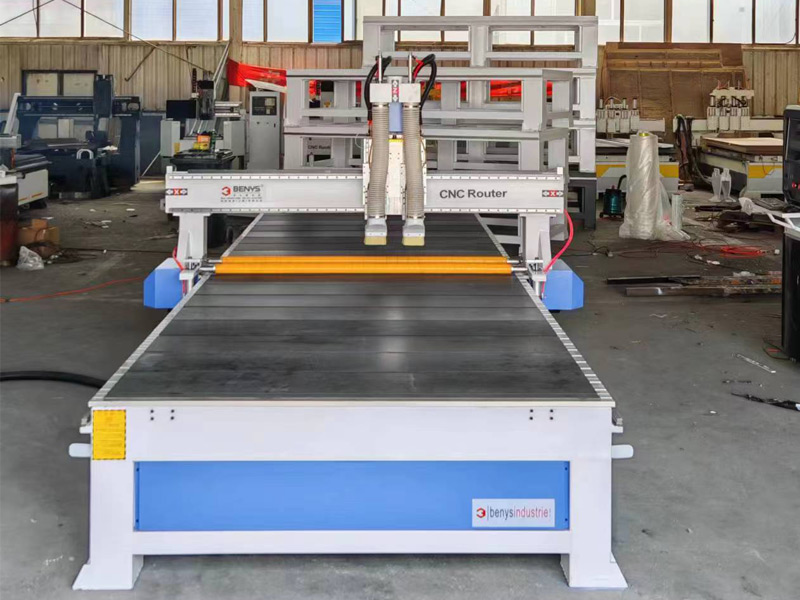

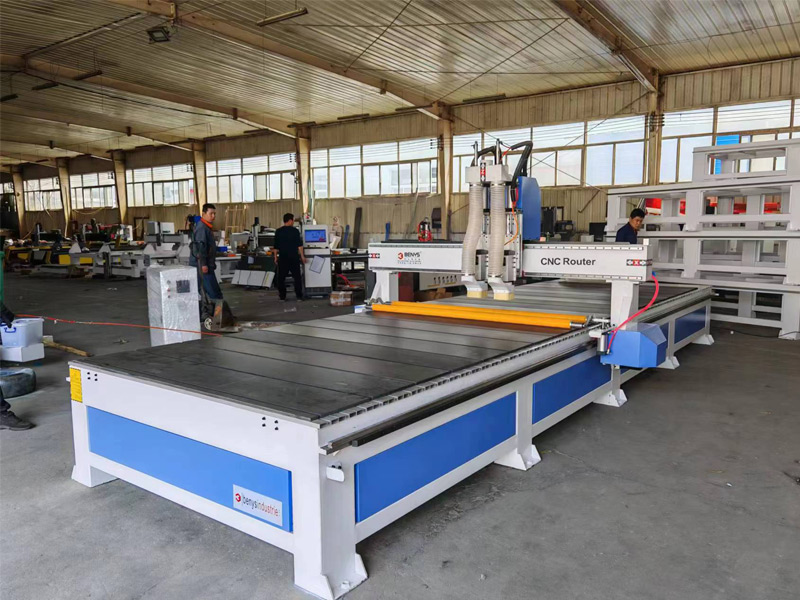

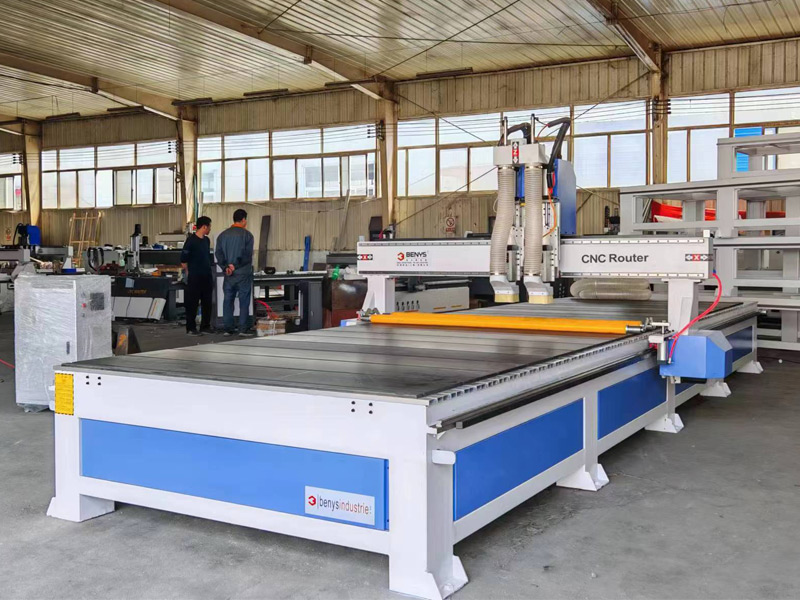

| Work schedule (XYZ) 1300mm× 2500mm× 190mm Maximum carving speed 20000mm/min Processing precision carving < 0.04/300mm Spindle motor 3.0KW water cooling [optional with other options] Spindle speed 6000～24000rpm Tool diameter Ф3.175～Ф12.7 Vacuum power 3KW Adsorption power 5.5kw The overall cast body is sturdy, non deformable, and durable. The Y-axis is driven by dual motors and carefully paired to ensure smooth movement. ◆ Adopting high-quality gear rack transmission, fast speed and high precision. ◆ Adopting imported square linear guide rails to ensure the accuracy of the machine and withstand high loads. Adopting a dual chamber vacuum adsorption table, equipped with a highly suction vacuum pump, it can strongly adsorb materials of different areas; The adsorption area is controlled by advanced solenoid valves, which can be easily started and stopped with just a gentle press. ◆ Humanized design of the countertop, which can both absorb and clamp work, making it easy to use. Intelligent protection table to prevent possible damage to the table caused by misoperation; Intelligent processing boundary protection to prevent mechanical collisions caused by design panels exceeding the processing range. The automatic refueling and lubrication system can complete regular maintenance with just a gentle press. Widely applicable to the processing and production of furniture processing industry, home decoration industry, woodworking decoration industry, door industry, wooden crafts and other industries. This model is suitable for large-scale single line body, milling bottom, 3D relief, cutting and other carving processes. Monthly production of over 1000 units. Our professional sales and after-sales service team will promptly and efficiently solve your problems. National Unified Sales Hotline: 400-6587-688 Jinan Huawei CNC Equipment Co., Ltd Address: No. 18-1 Tonghua Road, Jinan City, Shandong Province Postal Code: 250000 Phone: 0531-88620266 Fax: 0531-88276988 Mobile phone: 15853195586 E-mail: cncmachine@jnhwcnc.com {1} {2} {3} {4} {5} {6} {7} {8} {9} {10} {11} {12} {13} {14} {15} {16} {17} {18} {19} {20} {21} {22} {23} {24} {25} {26} {27} {28} {29} {30} {31} {32} {33} {34} {1} {2} {3} {4} {5} {6} {7} {8} {9} {10} {11} {12} {13} {14} {15} {16} {17} {18} {19} {20} {21} {22} {23} {24} {25} {26} {27} {28} {29} {30} {31} {32} {33} {34} | {1} |
